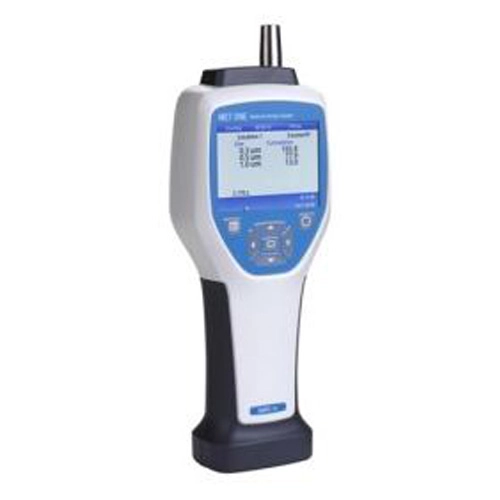

파티클카운터 MET ONE HHPC-3+

Name: 파티클카운터 MET ONE HHPC-3+
Brand: MET ONE
Availability: InStock

₩0

파티클카운터,분진계,분진측정기

Product

원산지 USA

제조사 MET ONE

브랜드 MET ONE

구매평

Q&A

구매하기 견적요청,구매문의

견적요청,구매문의 견적요청,구매문의

구매평

Q&A

MODEL	HHPC-3+
Particle Size Range	2089310-02 (3 Channel 0.3um) 0.3um - 10um in size channels per ISO 14644-1 (FS 209E) industry standard
Particle Size Range	2089310-08 (3 Channel 0.5um) 0.5um - 5um in size channels per ISO 14644-1 (FS 209E) industry standard
Number of size channels	3
Weight	Ultra-lightweight at 1.5 lbs for comfortable handheld use
Flow rate	2.83 lpm. Take ISO 14644-1 class 5 compliant 0.3um samples in a minute
USB support	Simple data export to memory stick or direct connect to PC via USB cable. No software required.
Ethernet support	Access particle data over network with common browsers such as Windows Explorer, Safari and Firefox (requires optional cradle)
Display	Large 3.5" High resolution 320 x 240 color for super clear viewing with intuitive icons for easy navigation
Display configuration	User selectable size channels with super-large font options
Display data modes	Traditional tabular particle counts or trend graph for easy particle profiling
Enclosure	High impact polycarbonate ABS for exceptional durability
Dimensions	10.7" x 3.9" x 2.1". Contoured for convenient single handed operation
Battery duration	Over 10 hours with typical use model. Minimum 5.5 hours continuous sampling
Data storage	10,000 records for the most demanding applications
Counting Efficiency	2089310-02: 50% @ 0.3 µm; 100% for particles > 0.45 µm (per ISO 21501)
Counting Efficiency	2089310-08: 50% @ 0.5 µm; 100% for particles > 0.75 µm (per ISO 21501)
Zero Count Level	1 count / 5 minute (per JIS B9921)
Concentration Limits	10% at 4,000,000 per cubic foot (per ISO21501)
Count Modes	Raw counts, N/CF, N/CM, N/L in Cumulative or Differential mode
Security	Administrator password controlled (optional)
UI Languages	English and Japanese
Alarms	User defined: Counts
Battery charging	3.5 hours
Operating environment	50°F to 104°F (10°C to 40°C) / < 95% non-condensing
Storage environment	14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing
