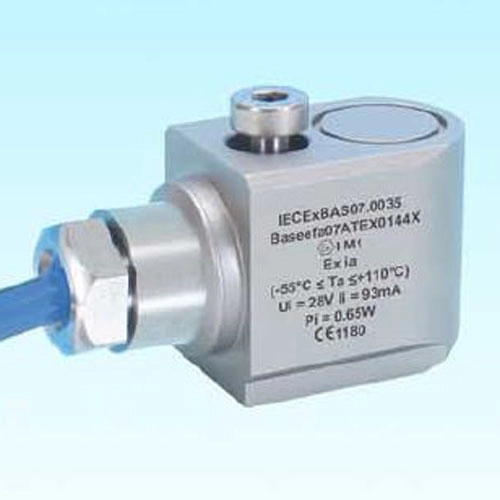

방폭형 가속도센서(PUR) Hansford Sensors HS-100IS10001**

Name: 방폭형 가속도센서(PUR) Hansford Sensors HS-100IS10001**
Brand: Hansford Sensors
Availability: InStock

₩0

진동,진동센서

구매평

Q&A

구매하기 견적요청,구매문의

견적요청,구매문의 견적요청,구매문의

구매평

Q&A

Technical Performance
설치 공진(Mounted Base Resonance)	22㎑(nominal))
감도(Sensitivity)	100㎷/g±10% Nominal 80㎐(22℃)
주파수 응답속도(Frequency Response)	2㎐~10㎑±5% 0.8㎐~15㎑±3㏈
절연(Isolation)	Base isolated
측정 범위(Measurement Range)	±80g
크로스 감도(Transverse Sensitivity)	5%이하
Electrical
전기적 잡음(Electrical Noise)	최대 0.1㎎
전류 범위(Current Range)	0.5㎃~8㎃
바이어스 전압(Bias Voltage)	10~12Volts DC
정정 시간(Settling Time)	2초
출력 임피던스(Output Impedance)	최대 200 Ohms
본체 절연(Case Isolation)	500Volts일 때 10⁸ Ohms 이하
Environmental
규격사용환경온도 (Certified Temperature Range)	Ex ia IIC T6(-55℃≤Ta≤+60℃) Ex ia IIC T4(-55℃≤Ta≤+110℃) On request-consult Sales Office
센서 사용환경온도(Sensor Temperature Range)	-40~90℃
연결 실링(Sealing)	IP68
최대 진동(Maximum Shock)	5000g
전자기 방사선(Emissions)	EN61000-6-4:2007
면역력(Immunity)	EN61000-6-2:2005
Mechanical
본체 재질(Case Material)	Stainless Steel
검출 소자/구성(Sensing Element/Construction)	PZT/Compression(압력)
Mounting Torque	8Nm
Mounting Bolt provided	M6×33㎜ long, 1/4" 28 UNF×33㎜ long or M8×33㎜ long
무게(Weight)	170 gms(nom)
최대 연장 케이블(Maximum Cable length)	시스템 스펙참조
케이블(Cable)	PUR Screende-length to be specified with order
장착 케이블(Mounting Threads)	모델 식별법 참조
위험 심도(Submersible Depth)	최대 100 metres(10bar)
Intrinsically Safe Requirements
최대연장케이블(Maximum Cable Length)	시스템 스펙 참조 M06-003-B(Armoured) M06-004-B(PUR) M06-005-B(Silicon)
세부규격:그룹Ⅰ(Certificate details:Group Ⅰ)	IECExBAS07.0037X Baseefa07ATEX0149X Ex)I M1 Ex ia I (-55℃
세부규격:그룹Ⅱ(Certificate details:Group Ⅱ)	IECExBAS07.0035X Baseefa07ATEX0144X Ex)Ⅱ 1GD T130℃ Ex ia IIC T4 Ex tD A20 IP65 T130℃ (-55℃≤Ta≤+110℃)
세부규격:그룹Ⅱ(Certificate details:Group Ⅱ)	IECExBAS07.0035X Baseefa07ATEX0144X Ex)Ⅱ 1GD T80℃ Ex ia IIC T6 Ex Td A20 IP65 T80℃ (-55℃≤Ta≤+60℃)
가속도 시스템 규격 (Accelerometer System Certificate)	Baseefa07Y0145 Ex ia IIC T6(-55℃≤Ta≤+60℃) Ex ia IIC T4(-55℃≤Ta≤+110℃) On request-comsult Sales Office
시스템 연결(System Connections)	Drawing M06-003-B(Armoured) Drawing M06-004-B(PUR) Drawing M06-005-B(Silicon)
전극 매개변수(Terminal Parameters)	Ui=28V, Ii=93㎃, Pi=0.65W
500V 절연(500V Isolation)	Unit Will Pass A 500V Isolation Test
Barrier	1×Pepperl+Fuchs Galvanic Isolator KFD2-VR4-Ex1.26(BAS02ATEX7206) sheet 1 of M06-003-B, M06-004-B and M06-005-B. 1×MTL Zener Barrier MT7728 (BAS01ATEX7217) or Pepperl+Fuchs Zener Barrier Z728(BAS01ATEX7005) or any other barrier that conforms to note 2 of sheet 2 of M06-003-B, M06-004-B, M06-005-B.
Notes:	Special conditions of safe use for Group Ⅱ dust. The free end of the cable on the integral cable version of the apparatus must be terminated in an appropriately dust-proof enclosure.
